WANT BOTH Classical & Gospel
If jeans and suits are both accepted in your church,
then so will a Hammond 935.

If your church has contemporary and traditional
worship services, we offer a Hammond that's two
organs in one. See us and hear for
youself how versatile Hammonds are.

Call 1-877-432-5700 to arrange an audition

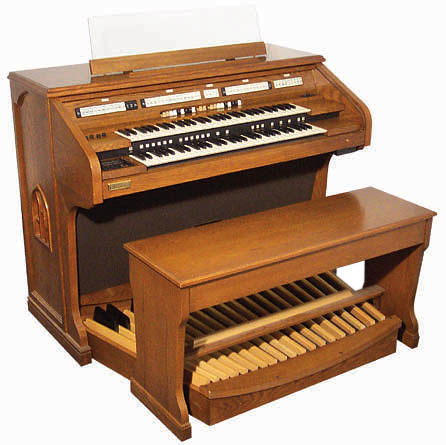

935

It’s the perfect combination of Hammond’s drawbars and superb classic voices! It’s the organ that will fit any player.
The 935 also contains extra voices, disk drive sequencing and internal speakers to support any churches’ musical needs.

enlarge image



MAIN FEATURES
In 1935, Laurens Hammond introduced to the world the first practical and affordable electric organ for churches. Now, in 1995, Hammond introduces a new era in Hammond institutional organs.
   Imagine one instrument that can be used to play Gospel, Classical and Contemporary Christian music. Imagine further an instrument with MIDI controller capabilities heretofore unheard of in an instrument of this type. The Hammond 926/935 Classic Organ gives you all of this and more.

Tonal Resources :
The famous Hammond Harmonic Drawbars are incorporated using Hammond's DRH" sampling technology. Even such things as Drawbar foldbacks at the top and bottom octaves and Key Click variances are included to reproduce the classic "tonewheel" sound with utmost fidelity. The resources of a traditional pipe organ are represented, with a wealth of organ voices very carefully chosen and voiced to give the distinctive "American organ" sound. All four families of organ tone are represented, enabling every type of classical organ literature to be rendered exactly as written. In addition, a full selection of orchestral voices such as Grand Piano, Strings and Choir is included to allow the rendering of contemporary orchestral arrangements.


MIDI :
The 926/935 has the most powerful MIDI implementation to be found anywhere on a church organ, such as 7-channel MIDI keyboard controller capability, Program and Controller changes, and the ability to "map" the manuals so as to selectively play the internal voices or voices from a connected MIDI device. The built-in Disk Drive allows you to record and store your own musical arrangements on floppy disks, as well as store banks of Combination settings

Leslie® Ready :
In addition to the built-in electronic Leslie, the model 912 Leslie Speaker cabinet is especially designed to interface with the 926/935 Classic Organ. The rotors can be operated in three modes - Fast (Tremolo), Slow (Chorale) or Off.
   To you, then, we proudly present the Hammond 926/935 Classic Organ.



935 Classic Organ Specifications

Sound Generator Pipe & Extra Voice - 4 x VASE III (256 note polyphony)
Drawbar & Percussion - 1 x VASE III (64 note polyphony)
Manuals Swell - 61 Keys (C1 to C6)
Great - 61 Keys (C1 to C6)
Pedalboard 32-notes radial concave
Stops Swell - Swell On, Bourdon Doux 16, Open Diapason 8, Holz Gedeckt 8, Gamba 8, Viox Celeste 8, Octave 4, Flauto Dolce 4, Nazard 2 2/3, Flautino 2, Mixture III, Contra Trompette 16, Hautbois 8, Vox Humana 8
Great - Great On, Montre 8, Rohr Flute 8, Prestant 4, Harmonic Flute 4, Aeoline 4, Twelfth 2 2/3, Principal 2, Cornet V, Mixture IV, Trompette 8, Clarinet 8
Pedal - Pedal On, Contra Violone 32, Principal 16, Bourdon 16, Octave 8, Gedeckt 8, Choral Bass 4, Mixture IV, Fagott 16, Trompette 8
Adjustable Pipe Voices Volume, Detune, Chiff, Cut Off, Pan Direction, Pan Image
Harmonic Drawbars Swell - 9 pitches, B-type/Mellow/Brite
Great - 9 pitches, B-type/Mellow/Brite
Pedal - 2 pitches, Muted/Normal
Percussion

Tabs - Second On, Third On, Fast Decay, Soft
Adjustable - Touch, Velocity, Decay, Level

Extra Voice
383 GM Sounds / 10 Drumkits
Swell - Swell Extra, Swell Piano, Swell Strings
Great - Great Extra, Great Chime, Great Strings
Pedal - Pedal Extra, Pedal Strings, Pedal Timpani,
       Upper compatible to General MIDI Level 1
Tuning

Master - 430 - 450 1Hz Steps
Drawbar - Tonewheel / Equal Temp.
Pipe/Drawbar/ExV - Fine Tune +/- 63 cents
Transpose - +/- 6 Semitones

Effects Internal Leslie - Digital, 6 Rotors (Drawbar)
Vibrato and Chorus - V1, V2, V3, C1, C2, C3
Swell and Great On/Off (Drawbar), Speed: 5(6.10 - 7.25Hz)
Reverb - 8 Programs (Pipe and ExV 1),
8 Programs (Pipe and ExV 2), 9 Programs (Drawbars)
Chorus - 8 Programs (ExV)
Delay - 9 Programs (ExV)
Sustain - 5 Lengths (Drawbar and ExV)
Tremulent (Pipe) - Swell, Great, Pedal On/Off
Mode: All, Dp/Fl/St, Reed, Adjustable Rate and Depth
Couplers Swell To Pedal, Great To Pedal, Swell To Great,
Melody Coupler, Manual Bass
Combination Presets 6 Banks x 13 Presets, Panel Memory, Cancel
Controllers Switches - Power On/Off, Light On/Off
Sliders - Master Volume, Reverb Depth, Pipe Volume,
Extra Voice Volume
Foot Controllers - Expression Pedal with Foot Switch
Display 20-characters, 2 lines, with 12 Control Switches
Disk Drive 3.5" Floppy Disk Drive 2mode, Both Song and Setup
Sequencer Record, Play/Pause, Stop/Rewind
MIDI Templates: 4 modes
Zoned 3 parts/keyboard (shared with Extra Voice),
Keyboard ch, Drawbar ch, Expression ch
Disk Drive 3 1/2"Floppy Disks - Combination and Sequencer Data
Connections Front Panel - Headphone, Leslie Switch, CU-2 Controller
Rear Panel - Line In L/R, Line Out L/Mono, R, Bass
Mic In with volume, MIDI In/Out/Thru, Pedal Keyboard
11-Pin Leslie, DC Out 12V
